Garden Tap Connector - 7/8 BSP - Suitable for Farmers Tap - Large Outside Tap

SKU / MPN: RBAF-078  |  EAN: 5070002692409

Need a reliable hose pipe connector for a large garden or farmers’ tap? Struggling to connect to large wall mounted outdoor water taps? Most “¾"” outside taps actually have a 7/8 BSP (G parallel) outlet thread. Standard ¾" BSP fittings are too small and 1" BSP is too big. This solid brass RoBox Design connector solves the problem with a precise 7/8 BSP female thread and an integrated quick-connect hose end compatible with Hozelock, Gardena and standard UK garden hosepipes.

7/8 BSP Brass Garden Tap Connector for Farmers’ Taps and Large Outside Taps

If you have tried a standard ¾" BSP hose connector on your large outside tap and it was too small, or a 1" BSP that was too big, you almost certainly need a 7/8 BSP parallel (G) fitting.

In the UK, the majority of larger agricultural and “farmers’” bib taps (often stamped ¾" on the body) use a 7/8 BSP parallel outlet thread. The ¾" marking almost always refers to the inlet size that screws into the wall plate or pipework, not the hose outlet. This is a frequent source of confusion at garden centres and DIY stores.

Our RoBox Design solid brass connector has:

• A precision internal 7/8 BSP (G parallel) female thread that screws directly onto the male outlet of your tap
• An integrated hose quick-connector with O-ring seal for a reliable, leak-free connection to any standard UK garden hosepipe
• Knurled grip for easy hand-tightening
• Face washer included for sealing against the tap

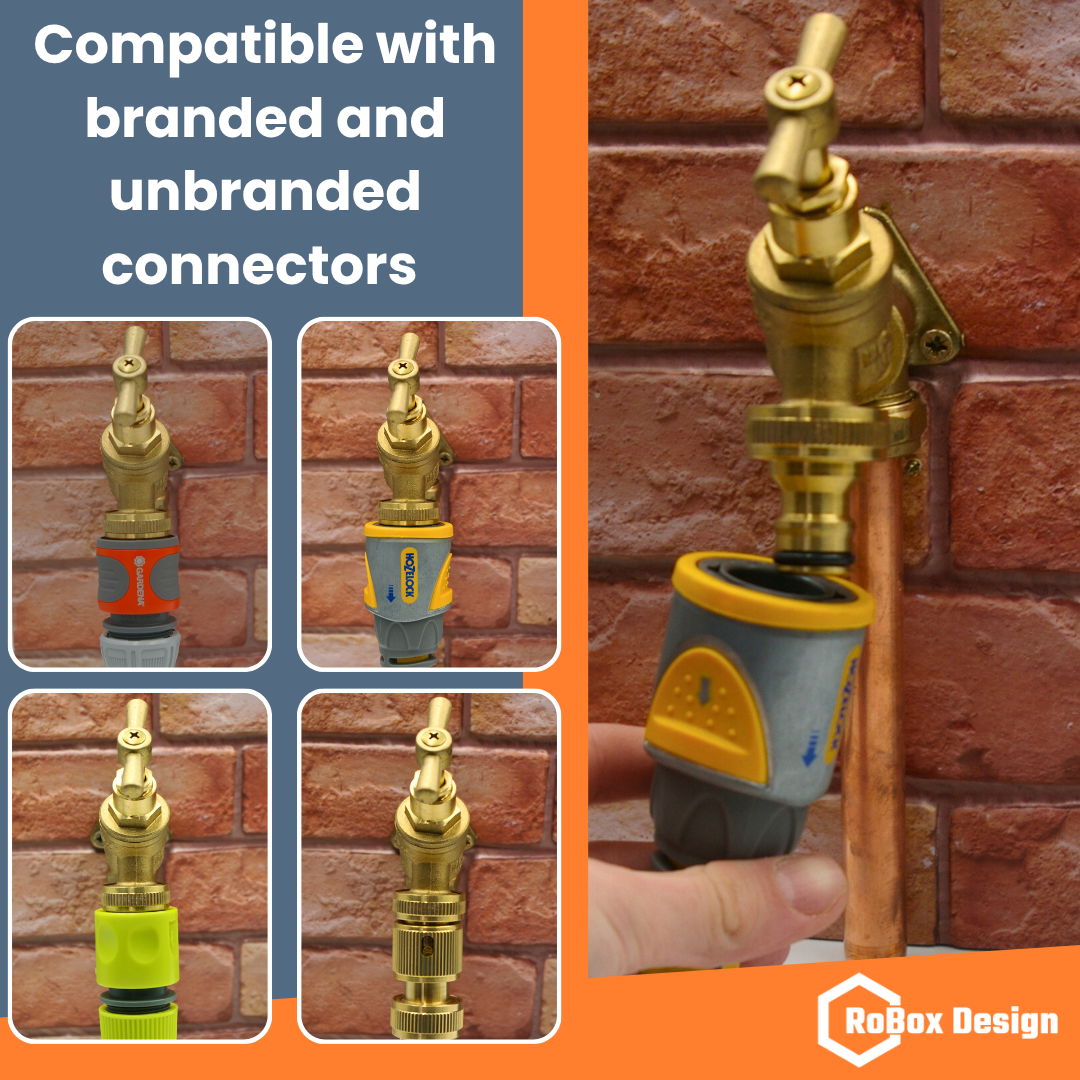

Compatible with popular quick-connect systems including Hozelock and Gardena style fittings.

⚠️ Important Size Warning – Please Read Carefully

This connector is for true 7/8 BSP parallel (G) threads only.

Some large farmers’ and agricultural taps use a metric M30 × 1.5 thread instead. If a 7/8 BSP connector starts but binds after one or two turns, you almost certainly need the metric version.

Sister product:
If your tap has an M30 × 1.5 metric fine parallel thread, order the matching connector here:
 Garden Tap Connector – M30 × 1.5 Metric – Suitable for Metric Thread Taps & Farmers’ Taps

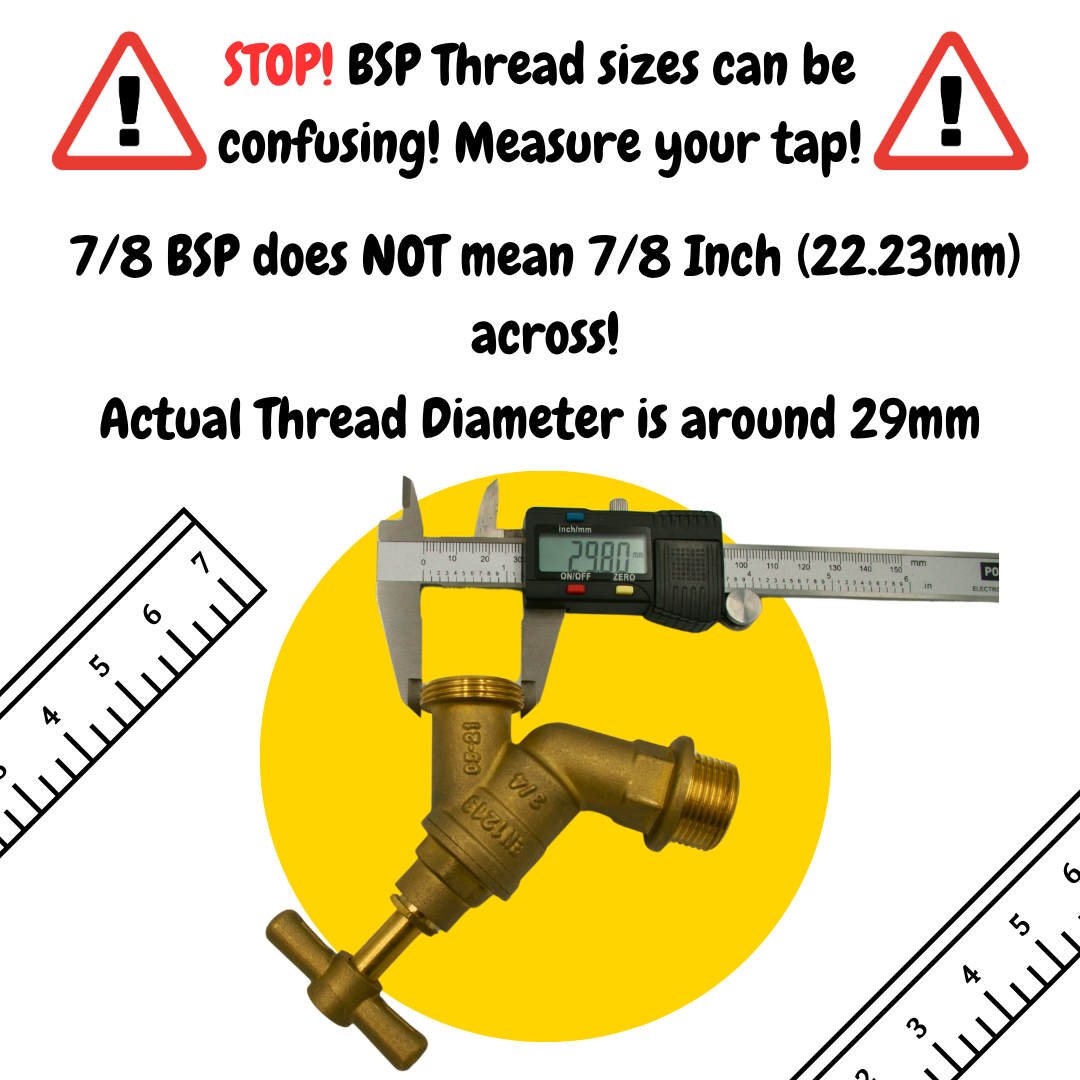

How to Check Your Thread

1. Measure the outside (major) diameter of the male thread on the tap outlet – it should be approximately 30 mm for 7/8 BSP (not 22 mm).
2. Check the pitch (distance between threads). 7/8 BSP is 14 threads per inch (≈1.814 mm pitch).
3. If the major diameter is ≈30 mm and the pitch is exactly 1.5 mm, you need the M30 version instead.

Ordering the wrong size is the most common reason for returns. Please double-check before purchasing or get in touch.

Key Features

• Solid brass construction for strength and long-term corrosion resistance
• Precision 7/8 BSP (G parallel) female thread – the correct size for most UK farmers’ and large outside taps
• Integrated hose quick-connect with O-ring seal
• Face washer included
• Knurled body for easy hand tightening
• Compatible with standard ½" and ¾" hose connectors and Hozelock/Gardena systems
• Suitable for Toolstation Made4Trade ¾" outside taps (code 46332)
• Natural brass finish

Specifications

What’s in the Box

1 × 7/8 BSP brass garden tap connector with O-ring and face washer.

Why Choose RoBox Design?

We specialise in the hard-to-find thread sizes that standard garden-centre and DIY-store fittings do not cover. Our connectors are engineered specifically for UK farmers’ taps, large outside taps and the common BSP parallel / metric confusion that causes so many returns.
